ISO-TOP WF FIXINGS

Convenient installation with the highest quality

High-quality and secure fixing on various substrates

High-quality screws and brackets are used for additional mechanical fixing of IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WINFRAMER. Window and door frames need to be mechanically fixed to the supporting frame system for in front of wall installation. The supporting frame system in turn also has to be screwed to the wall. The screws are specifically matched to the in front of wall installation system to guarantee quick and simple fitting.

Product benefits
  • designed and approved for fixing in IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WINFRAMER
  • approved for use on standard building substrates
  • screw head shape designed specifically for high-density PUR and EPS systems
Application Areas

The right assembly for all requirements

Once the supporting frame system has been bonded along its length to the relevant substrate (such as concrete, sand lime stone, brick, aircrete or wood) using ISO-TOP FLEX-ADHESIVE WF, it is then also fixed mechanically with the window screws described in this data sheet.

Additional fixing as described in the ETB guideline may also be needed for floor-level components. The IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WINFRAMER provide a number of different fixing methods for this purpose.

ISO-TOP WINFRAMER ALUMINIUM CONSOLES can be used at the installation stage as the basis for fixing in the system profile as described in the ETB guideline. The ISO-TOP ETB TIE PLATE EL and ISO-TOP JUSTA ETB ANCHOR BA can be used to create an ETB-compliant fixing on the inside of the window reveal either during or after installation. So the right fixing components are available for every application.

The ISO-TOP WF SCREWS were specially designed for the IN FRONT OF WALL INSTALLATION SYSTEM ISO-TOP WINFRAMER and can be used both to fix the window or door frame in the supporting frame system and for fixing to standard building substrates. The following table sets out the various screw type and lengths.

Components

ISO-TOP WINFRAMER ALUMINIUM CONSOLES*

For inserting in the fold area of the „TYPE 1“.

Easy to integrate during installation and can be subsequently fixed to existing attachment
points as per the ETB guideline.

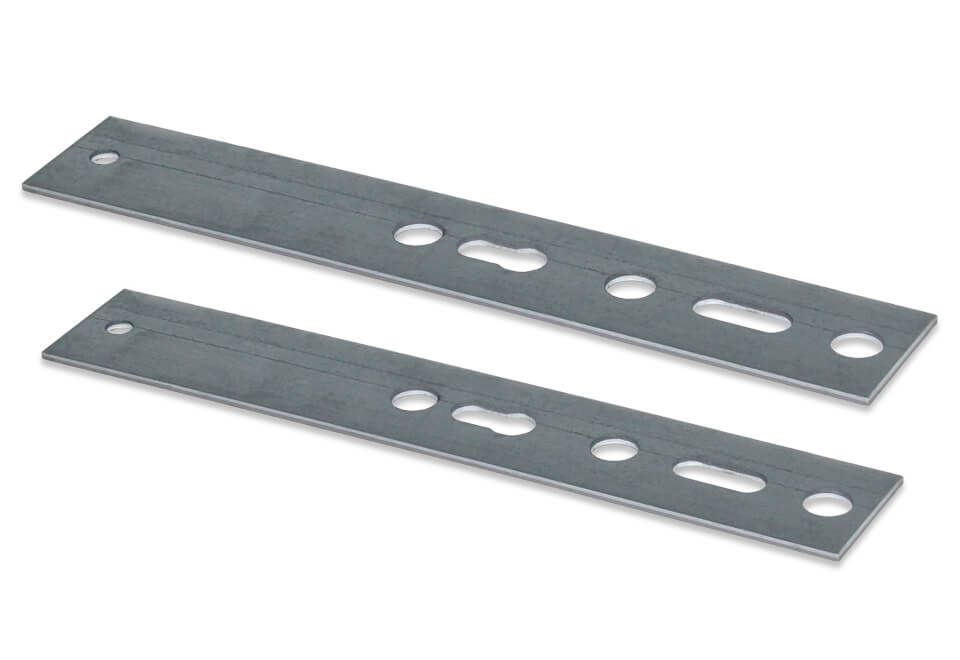

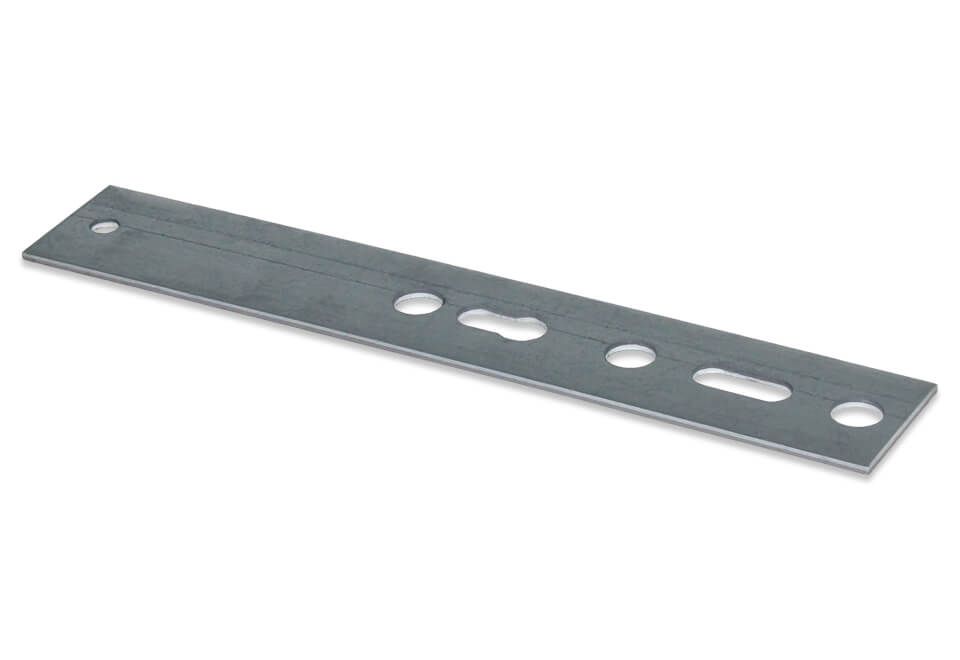

ISO-TOP ETB TIE PLATE EL*

For simple fitting or retrofitting of fixings as per the ETB guideline.

Can be subsequently fixed to existing attachment points as per the ETB guideline.



ISO-TOP JUSTA ETB ANCHOR BA*

For simple levelling and alingning of components as per the ETB guideline.

Adjustment, load transfer and functional alingningusing adjusting screws.



ISO-TOP JUSTA TT BEARER PLATE*

For load transfer and lateral fixing of components.



Adjustment, load transfer and functional alingning using adjusting screws.

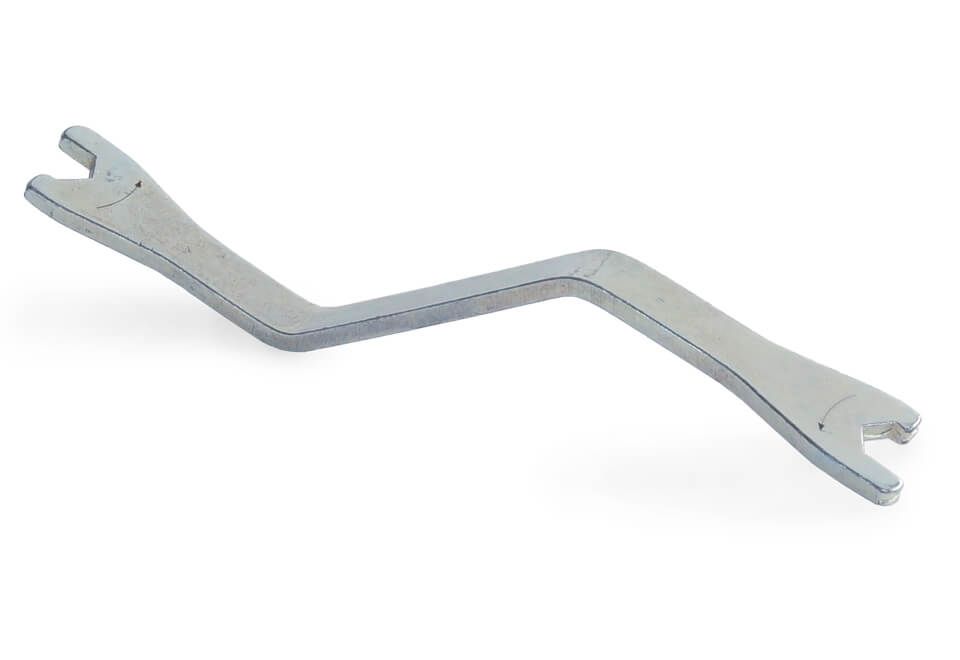

ISO-TOP ADJUSTING TOOL*

Adjustment tool for JUSTA ETB ANCHOR BA and JUSTA TT BEARER PLATE.



Mechanical ratcheting function for adjusting the window position when installed.

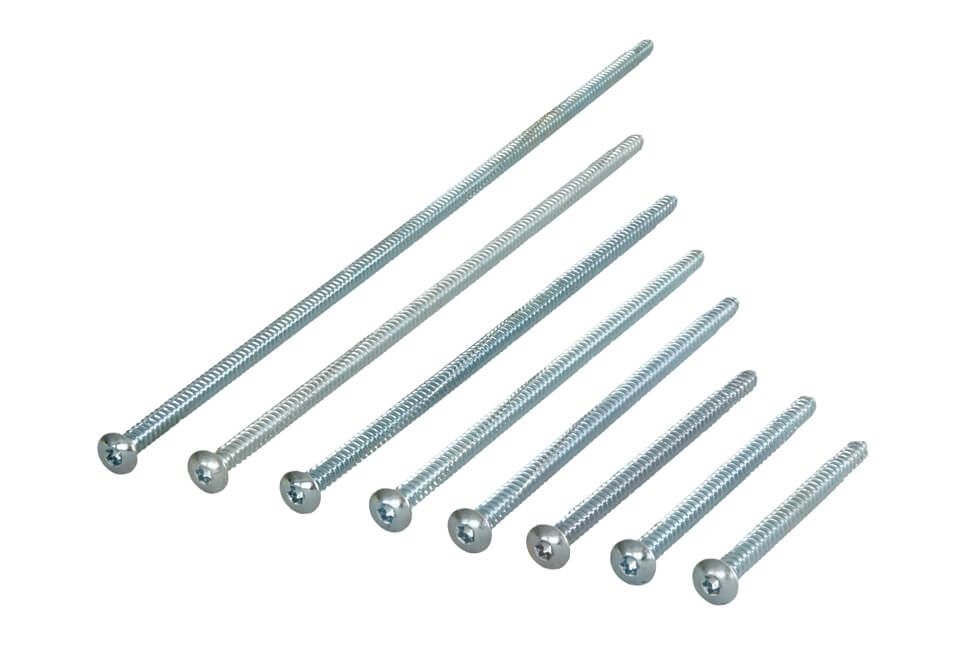

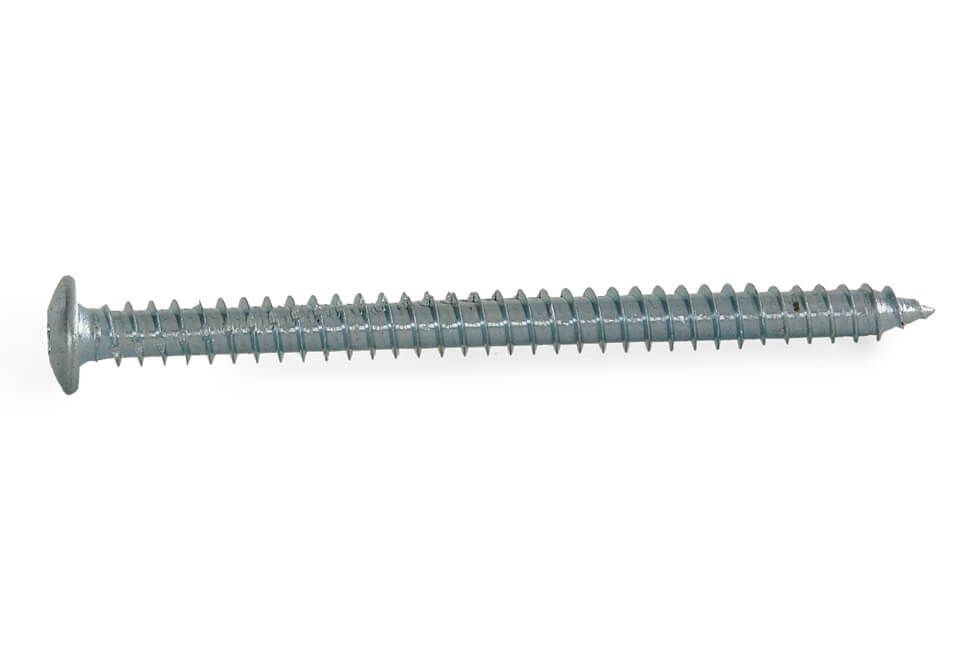

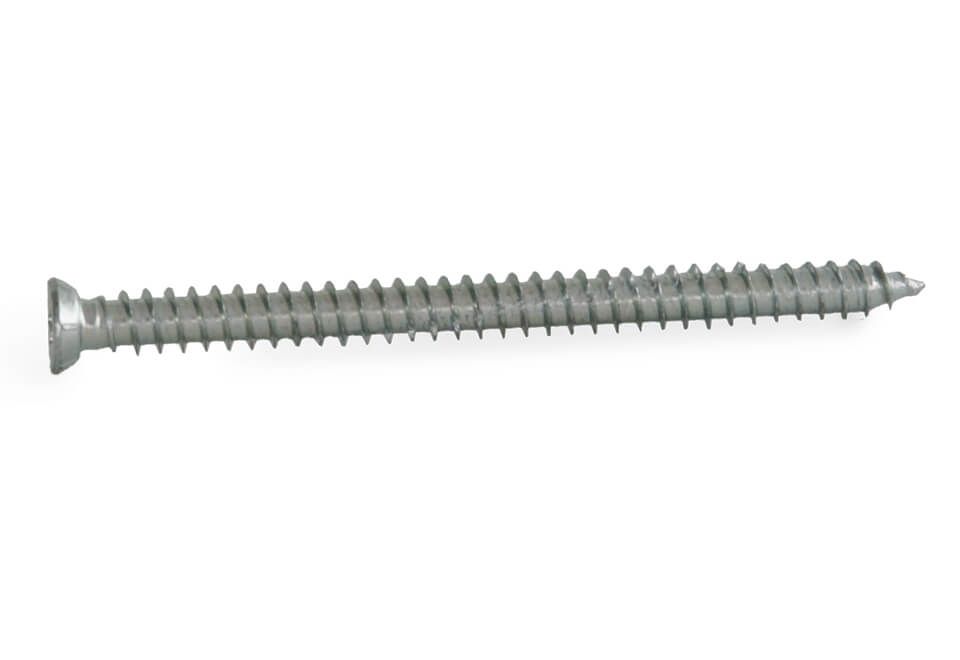

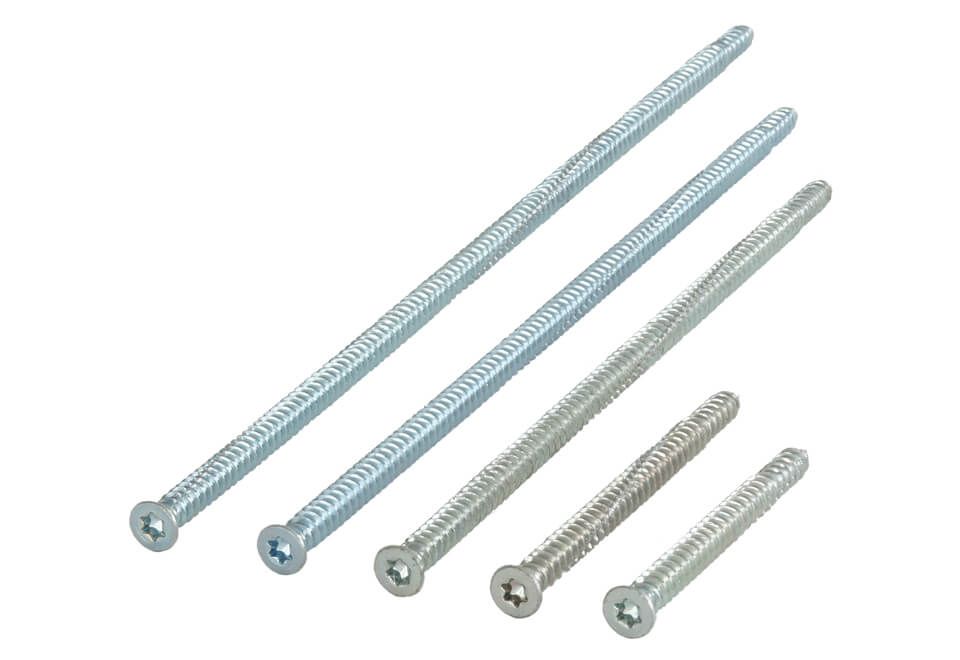

ISO-TOP WF SCREWS*

Different screw types as well as lengths and diameters are available for the individual IN FRONT OF WALL INSTALLATION SYSTEMS ISO-TOP WINFRAMER „TYPE 1", „TYPE 1" PREFAB and „TYPE 1" E30 as well as for the different wall materials.







* Dimensions and measurements you find on the data sheet.
