ISO-CONNECT EPDM SEALING COLLAR AND SEALING CORNERS

Durable outer seal

Save time and money on pre-wall mounting with metal angles

ISO-CONNECT EPDM SEALING COLLAR is a elastomer sealing system. It is used for external sealing of window and door elements that are installed in the facade with metal angles in front of the load-bearing wall. This makes the system particularly suitable for in front of wall sealing in external applications. It conforms to DIN requirements. The vulcanised corner connections create a long-lasting seal and are very fast to install.

ISO-CONNECT EPDM SEALING CORNERS

To supplement the sealing collar, we also supply moulded EPDM sealing corners for various connection areas on buildings. These can be used for in front of wall elements, for the lower Connection area, on floor-Level elements, balcony doors and patio door systems. The material thicknesses and properties correspond to those of the ISO-CONNECT EPDM SEALING COLLAR.

Product benefits

No more complicated attachment methods and leaks

  • permanent outer sealant
  • high elasticity – compensates for joint movement
  • extreme temperature and weather resistant
  • eurogroove gasket range suitable for many PVC and aluminium systems
  • installation time up to 6 times faster than sealing with foil strips
  • custom-fit to external window dimensions
  • complies with the requirements of the Building Energy Act (EnEV was valid 31.10.20)
    and the recommendations of the RAL “installation guide”
  • 10 Year Function Warranty*

* On the conditions of the manufacturer (available on request).

Application Areas

For all window types

ISO-CONNECT EPDM SEALING COLLAR is designed for structurally correct external sealing of door and window connections and can be used for all types of windows. It is ideal for the external sealing of structural elements in the facade area. ISO-CONNECT EPDM SEALING COLLAR is a versatile and proven sealing foil for use in PVC, wood, metal, window and facade constructions.

The sealing collars are made from highly flexible EPDM and are individually tailored for the application. They can be quickly fitted to the window using the optional butyl-adhesive or a suitable eurogroove gasket. A fitter places the prefabricated collar around the window in front of the wall, bonding it correctly to the supporting masonry wall.

This simple and reliable seal can be fitted up to 6 times faster than a seal with foil strips.

ISO-CONNECT EPDM SEALING CORNERS can be used for in front of wall elements, for the lower Connection area, on floor-Level elements, balcony doors and patio door systems.

ISO-CONNECT EPDM SEALING COLLAR AND SEALING CORNERS

ISO-CONNECT EPDM SEALING COLLAR

The four needs-based variants offer maximum flexibility

FINISH A

3-sided, without front part

  • without self-adhesive
  • with butyl-adhesive strip (BT)
  • with eurogroove gasket (K)

FINISH B

3-sided, without front part (E)

  • without self-adhesive
  • with butyl-adhesive strip (BT)
  • with eurogroove gasket (K)

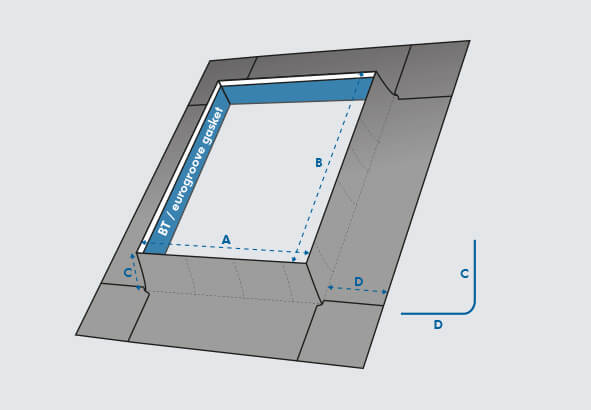

FINISH C

4-sided, without front part

  • without self-adhesive
  • with butyl-adhesive strip (BT)
  • with eurogroove gasket (K)

FINISH D

4-sided, without front part (E)

  • without self-adhesive
  • with butyl-adhesive strip (BT)
  • with eurogroove gasket (K)

ISO-CONNECT EPDM SEALING CORNERS

DIMENSIONS SEALING CORNERS

inside corner: 100 mm x 100 mm x 100 mm (see sketch)

DIMENSIONS SEALING CORNERS

outside corner: 200 mm x 200 mm x 200 mm (see sketch)
